LYINE Rotating Tower Container Hydroponic Farm System

LYINE Rotating Tower Container Farm for High-Density Hydroponic Production

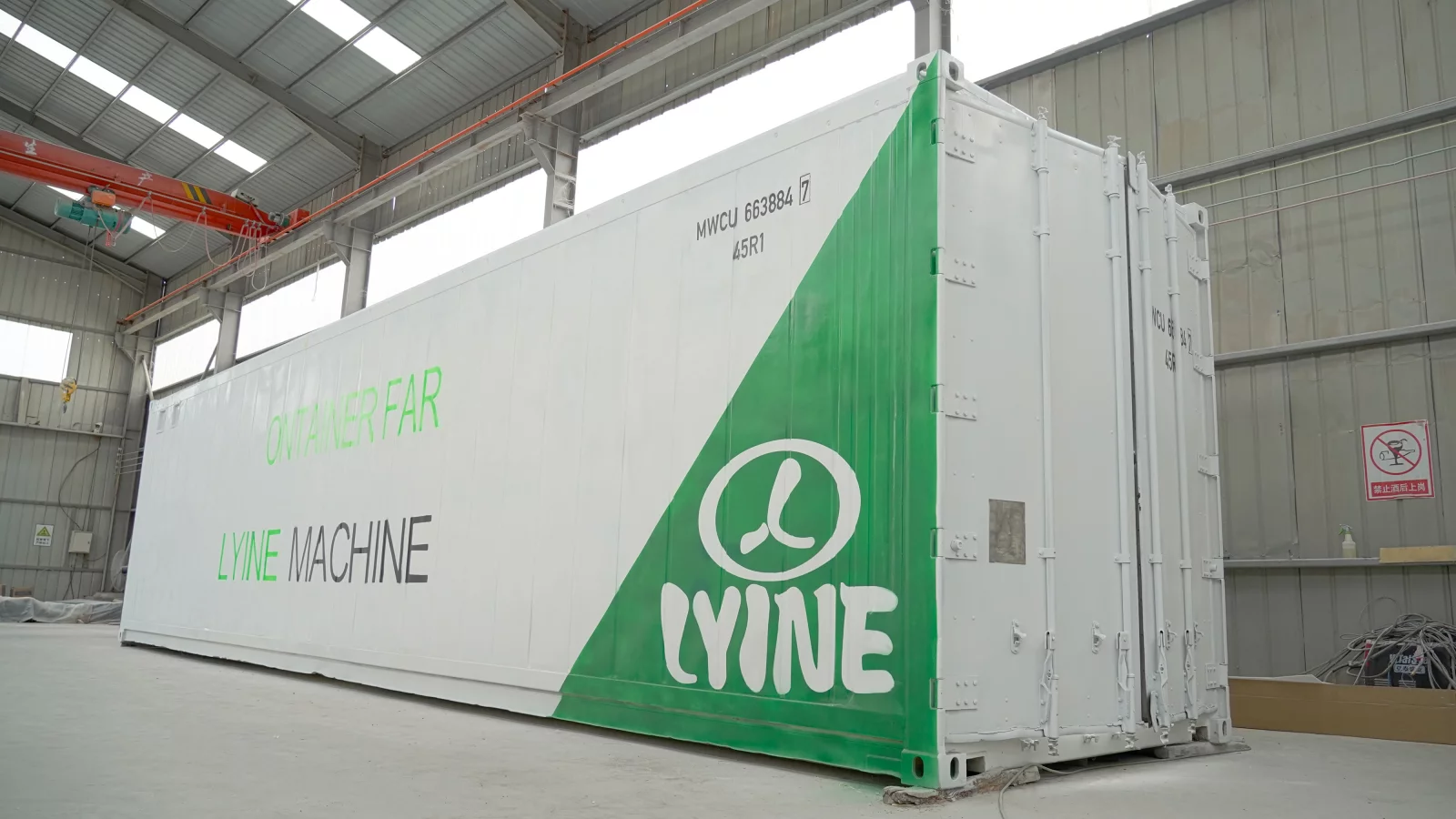

The LYINE rotating tower container hydroponic farm system is a fully integrated vertical farming solution designed for intensive crop production in controlled environments. Built inside a standard 40HQ refrigerated container, this system combines rotating tower technology with automated environmental control to maximize output within a compact footprint.

The structure is developed for leafy vegetables, herbs, and strawberries, supporting continuous year-round production. By integrating hydroponic cultivation, lighting systems, irrigation, and climate control into a single container unit, LYINE provides a self-contained growing platform suitable for commercial farming and urban agriculture projects.

Container Structure and Growing Environment

The container is constructed using a stainless steel frame with a thickness of approximately 2 mm, offering higher corrosion resistance and structural stability compared to conventional galvanized systems. The insulated container body includes polyurethane (PU) layers up to 10 cm thick across walls, roof, and doors, ensuring stable internal temperature and improved energy efficiency.

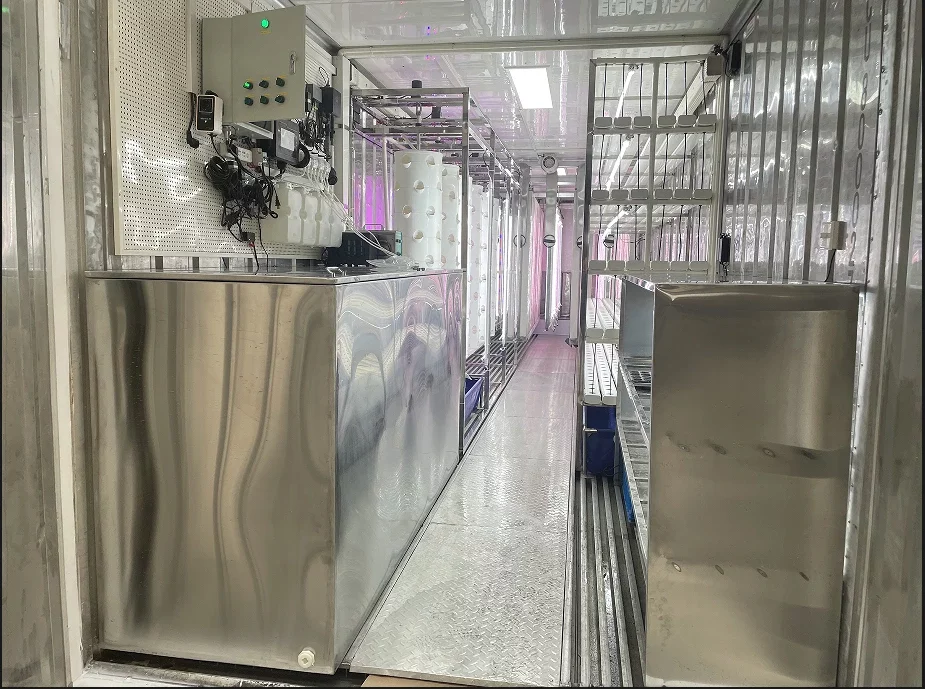

Inside the container, an aluminum alloy floor with integrated drainage and water collection systems supports clean and controlled operation. Additional elements such as stainless steel working areas, nursery sections, and optional seedling rooms allow the system to support multiple stages of plant development within a single unit.

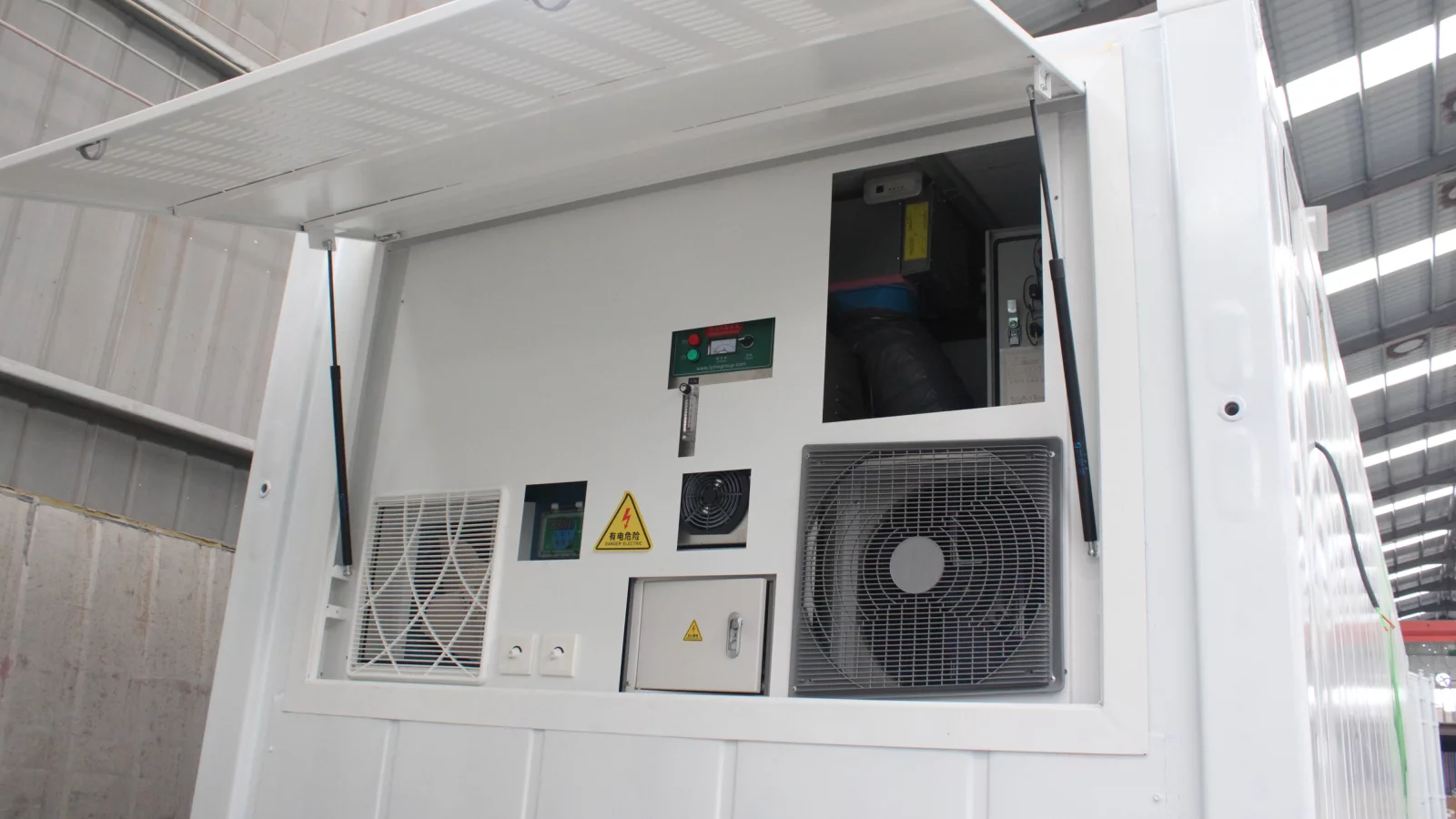

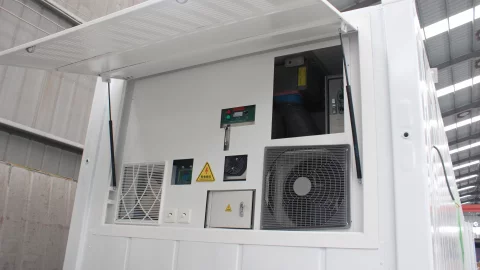

An industrial air conditioning and ventilation system is installed to regulate temperature and airflow, maintaining consistent growing conditions regardless of external climate.

Rotating Tower System and Space Optimization

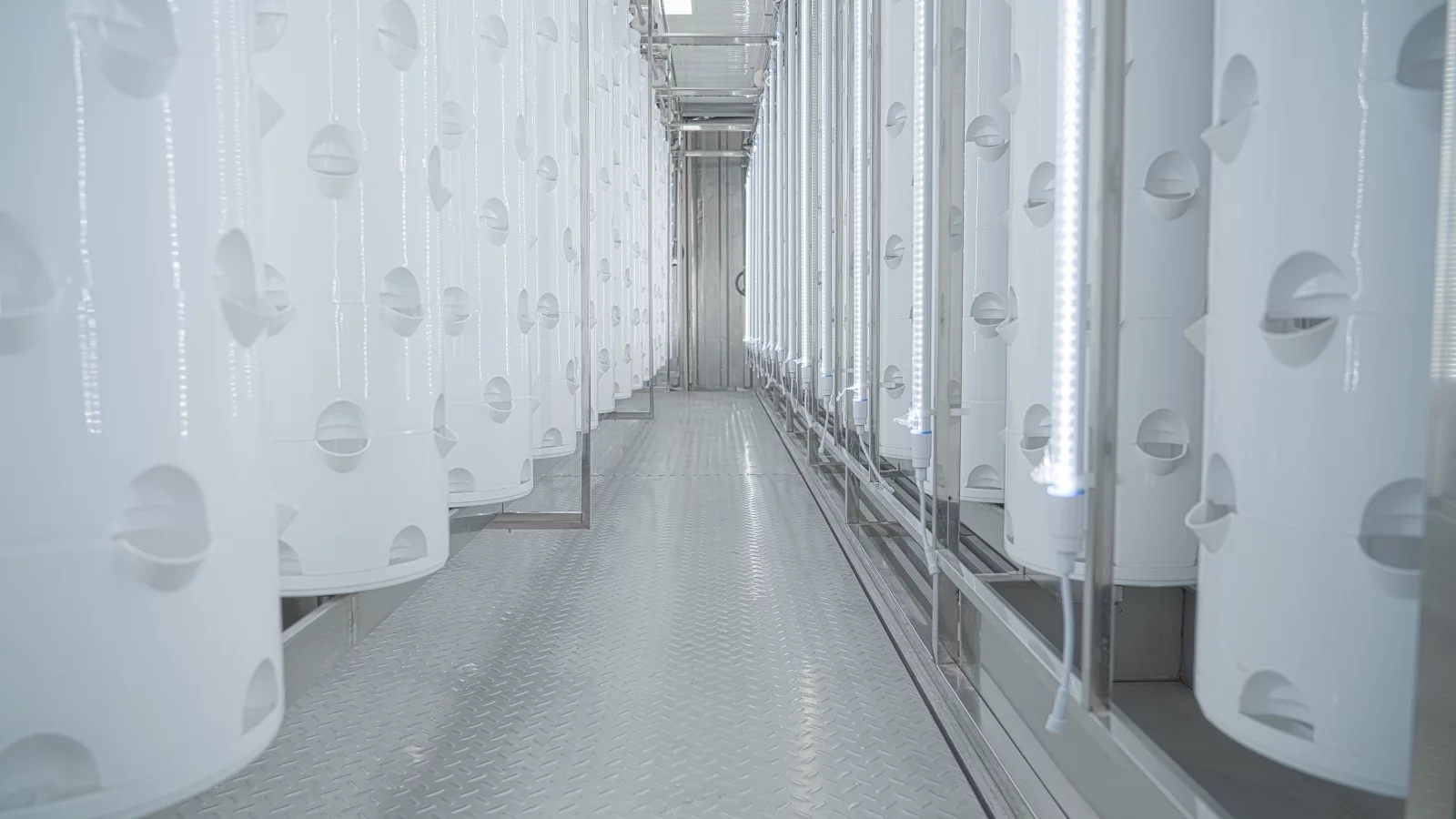

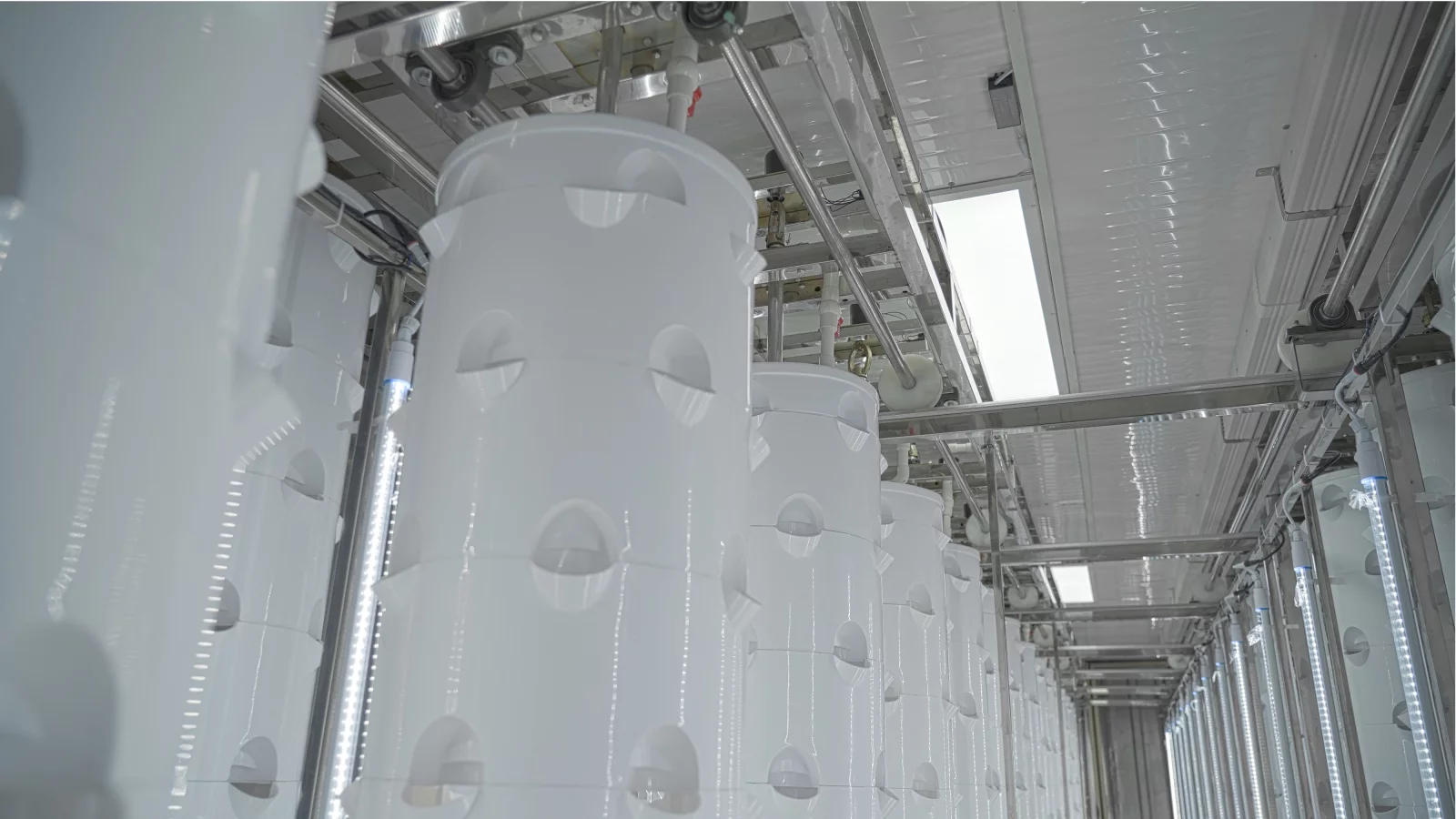

The rotating tower structure is designed to improve plant exposure to light and nutrients by using a slow-speed motor that continuously rotates the growing columns. This helps eliminate uneven plant growth caused by fixed lighting angles and ensures uniform development across all planting positions.

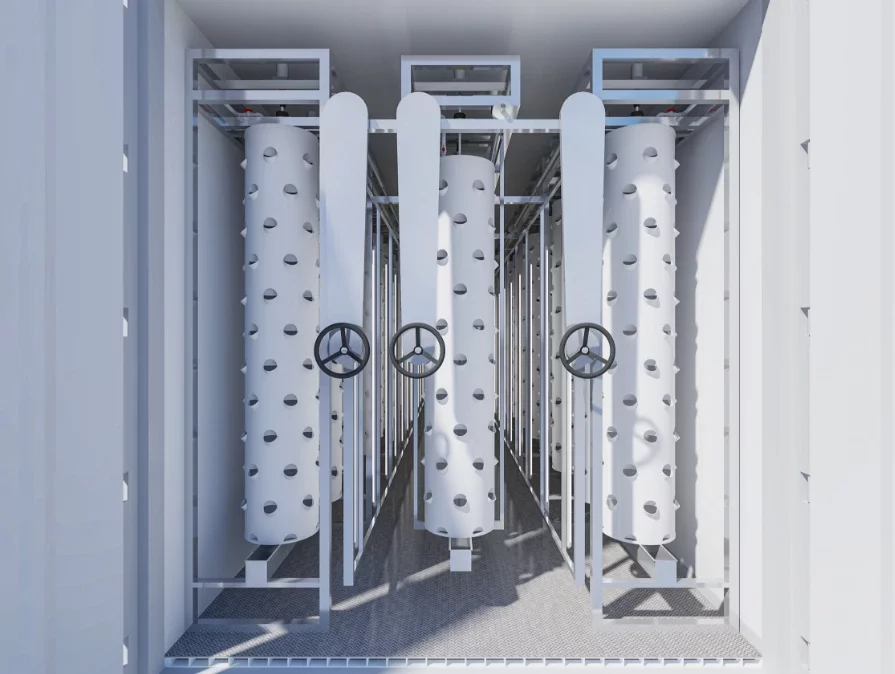

The system can be customized in height and number of layers, with configurations reaching up to 33 layers and approximately 6 meters in height. A movable rack system further enhances space utilization, allowing efficient arrangement of towers within the container and maximizing production per square meter.

Automation and Control System

The LYINE rotating container farm integrates a PLC-based centralized control system that manages key operational components, including irrigation, lighting, CO₂ supply, ventilation, and temperature regulation. This unified control approach simplifies system management and ensures consistent performance across all growing zones.

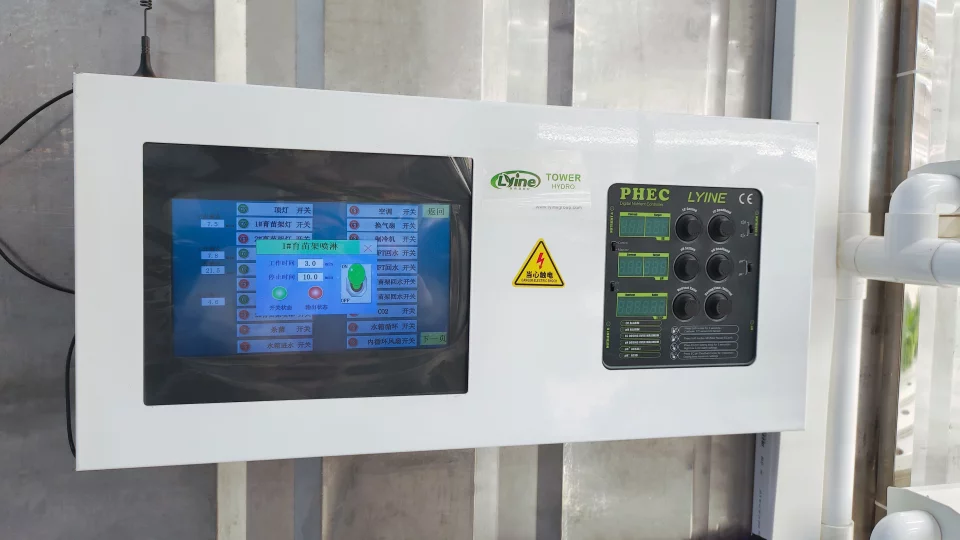

A touchscreen interface allows operators to monitor and adjust system parameters, while optional WiFi and mobile app connectivity enable remote access and real-time control. Additional features such as cameras and environmental sensors provide continuous monitoring of crop conditions and system performance.

The system is delivered pre-installed and pre-configured, requiring only water and electrical connections to begin operation. This reduces setup time and allows for rapid deployment in commercial or project-based environments.

Technical Parameters and System Data

Applications

The LYINE rotating tower container system is designed for high-efficiency agricultural production in locations where space, climate, or infrastructure limit traditional farming. It is suitable for urban farming projects, commercial hydroponic production, and regions requiring controlled environment agriculture.

• Commercial vertical farming and container farming projects
• Urban agriculture and local food production systems
• Greenhouse integration and hybrid farming solutions
• Remote or climate-challenged regions requiring controlled production

Why Choose LYINE Rotating Tower Container System

The key advantage of this system is the integration of rotating tower technology with a fully controlled container environment. The rotating structure improves light distribution and crop uniformity, while the enclosed system ensures stable growing conditions independent of external factors.

By combining automation, space optimization, and modular design, the LYINE container farm offers a scalable solution for modern agriculture. It enables growers to achieve high output with reduced water consumption, controlled inputs, and predictable production cycles.
