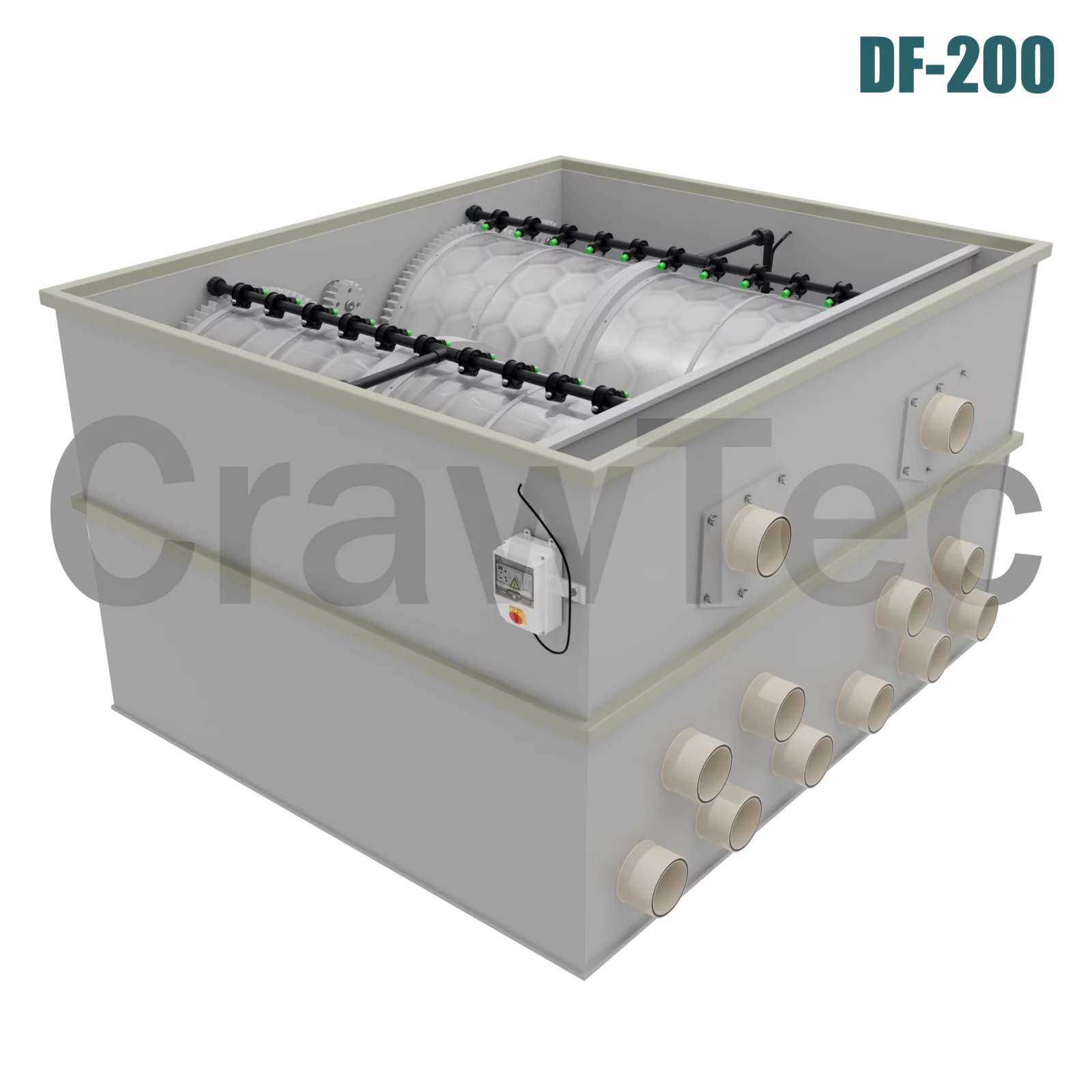

200 m³ Drum Filter for Industrial Aquaculture Systems
The CrawTec 200 m³ drum filter is a high-capacity mechanical filtration solution designed for large fish and shrimp farms operating with recirculating aquaculture systems. It provides continuous removal of suspended solids and mechanical contaminants without the need for constant operator supervision.
Water enters the filter through multiple inlet connections and is evenly distributed across two filtration drums. Fine particles are retained by a stainless steel mesh, ensuring stable water clarity and reliable system performance even under high hydraulic loads.
Filtration Process and Design

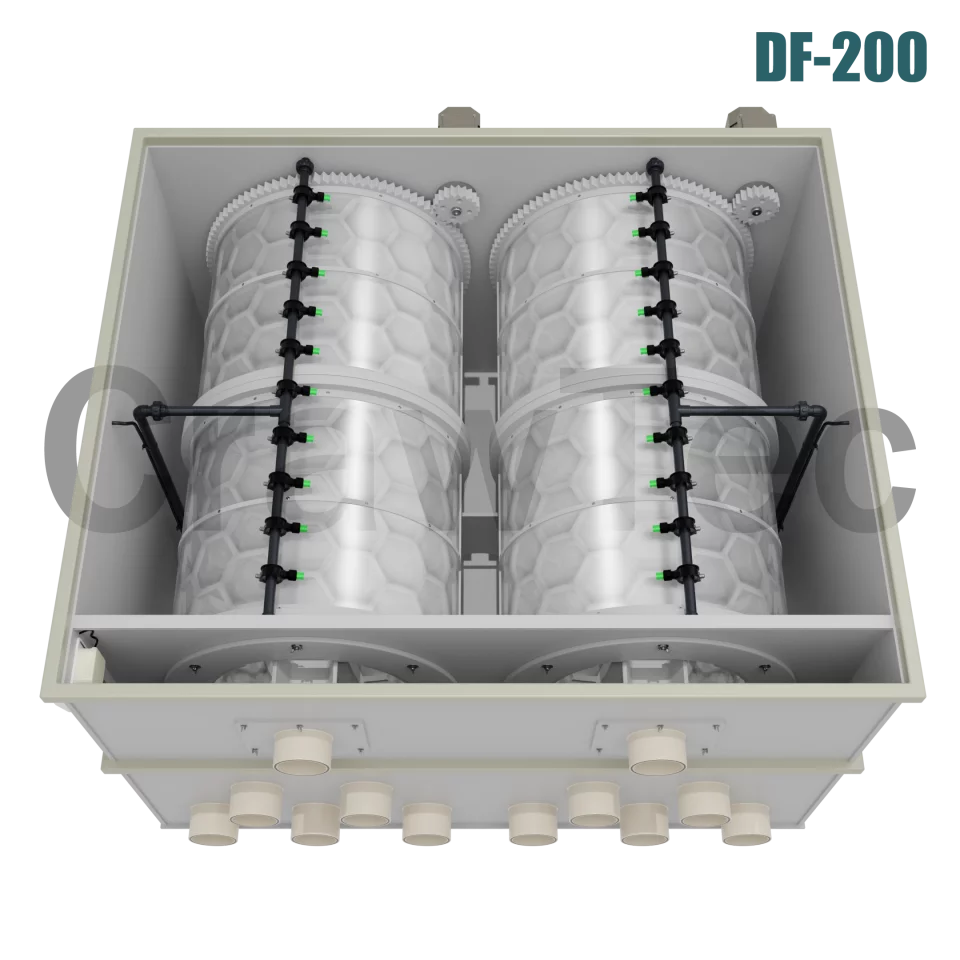

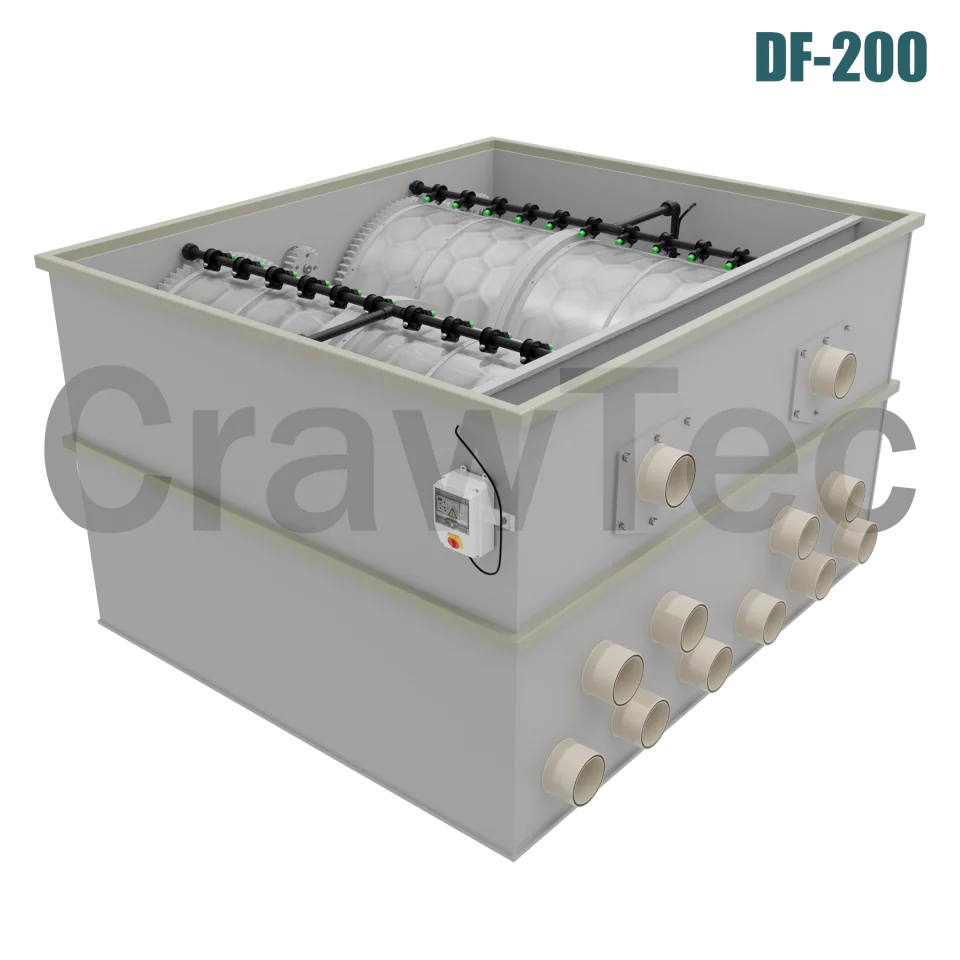

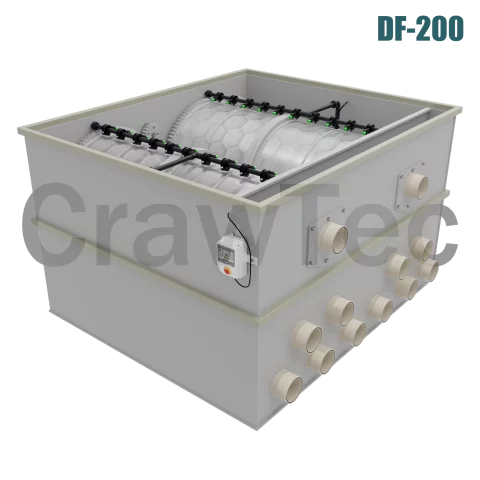

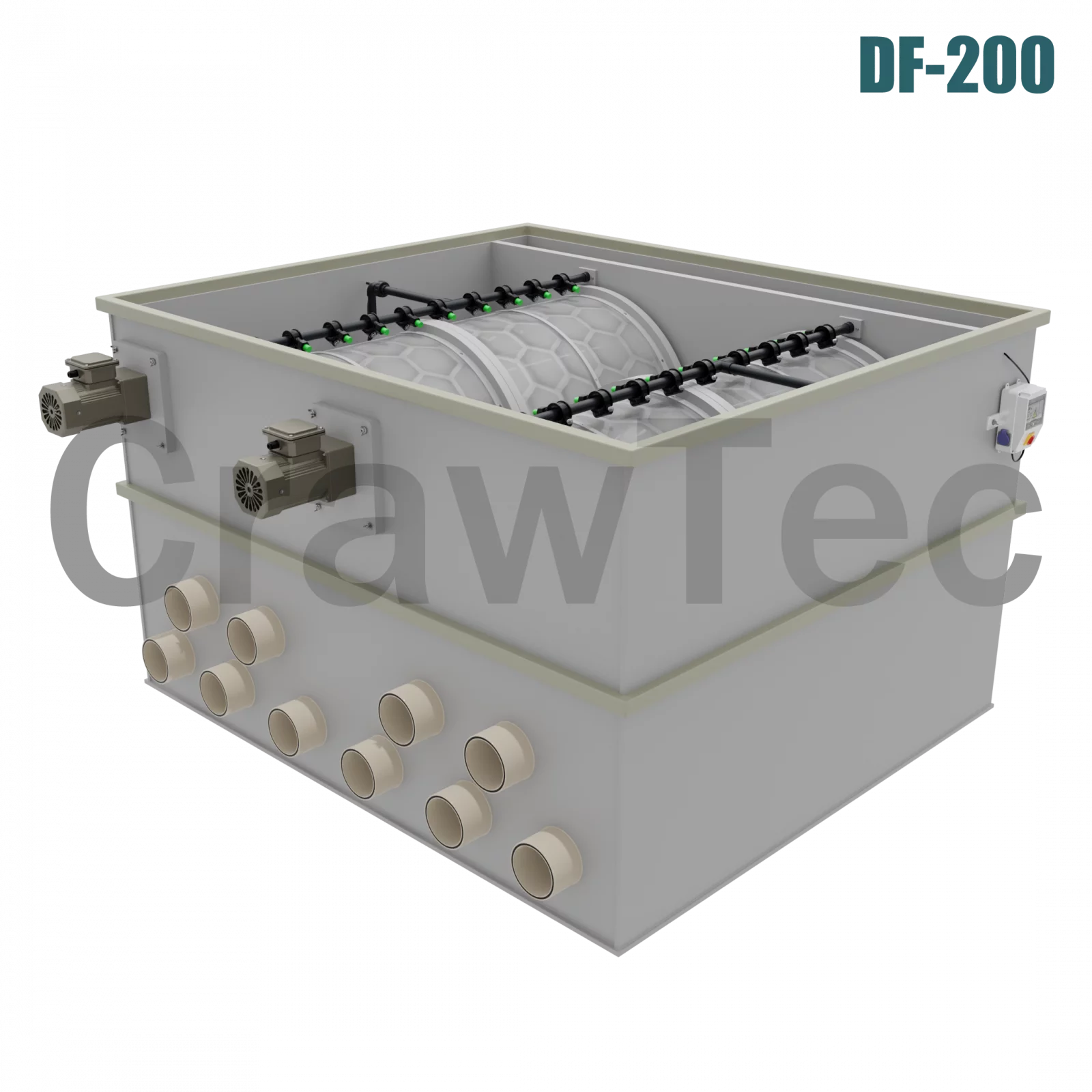

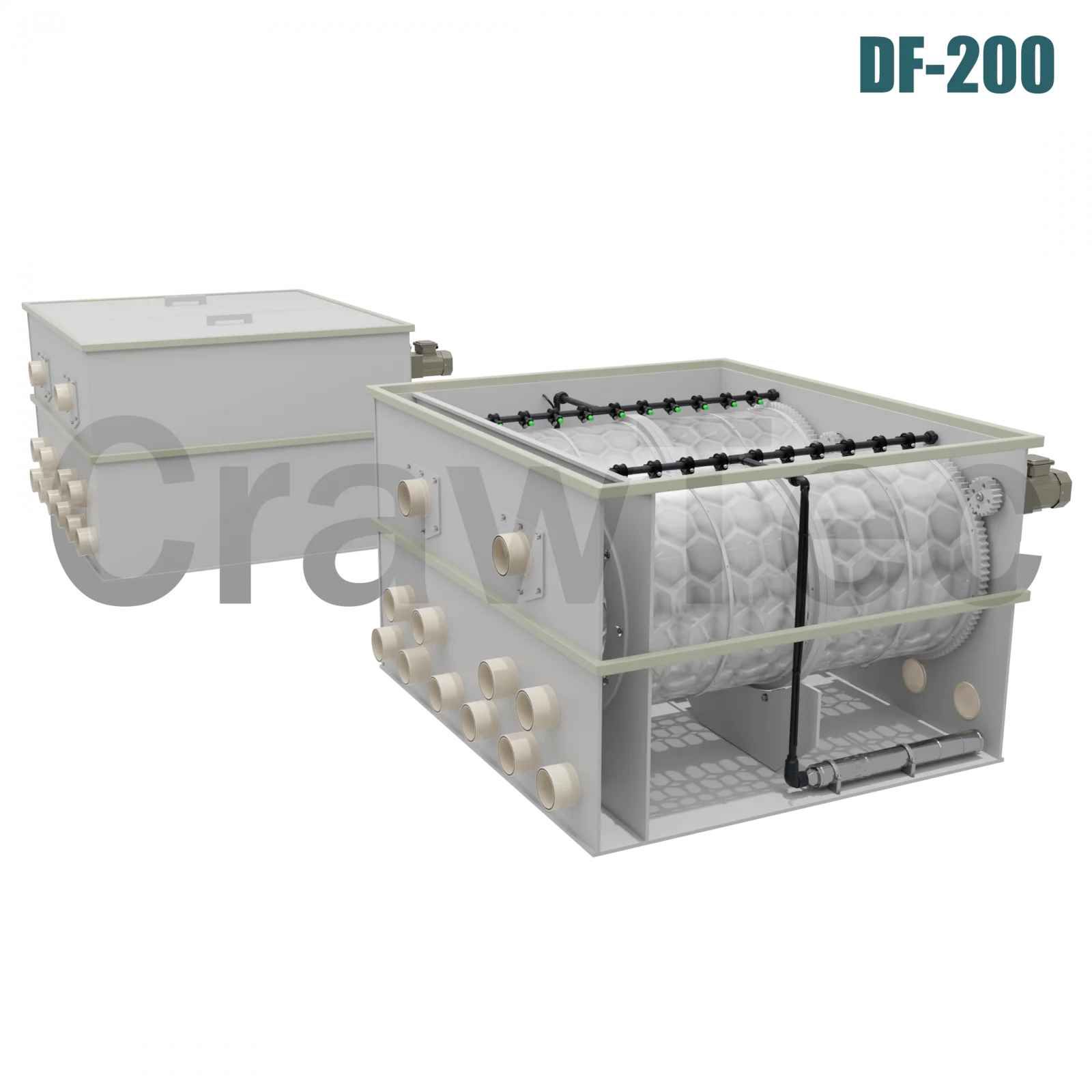

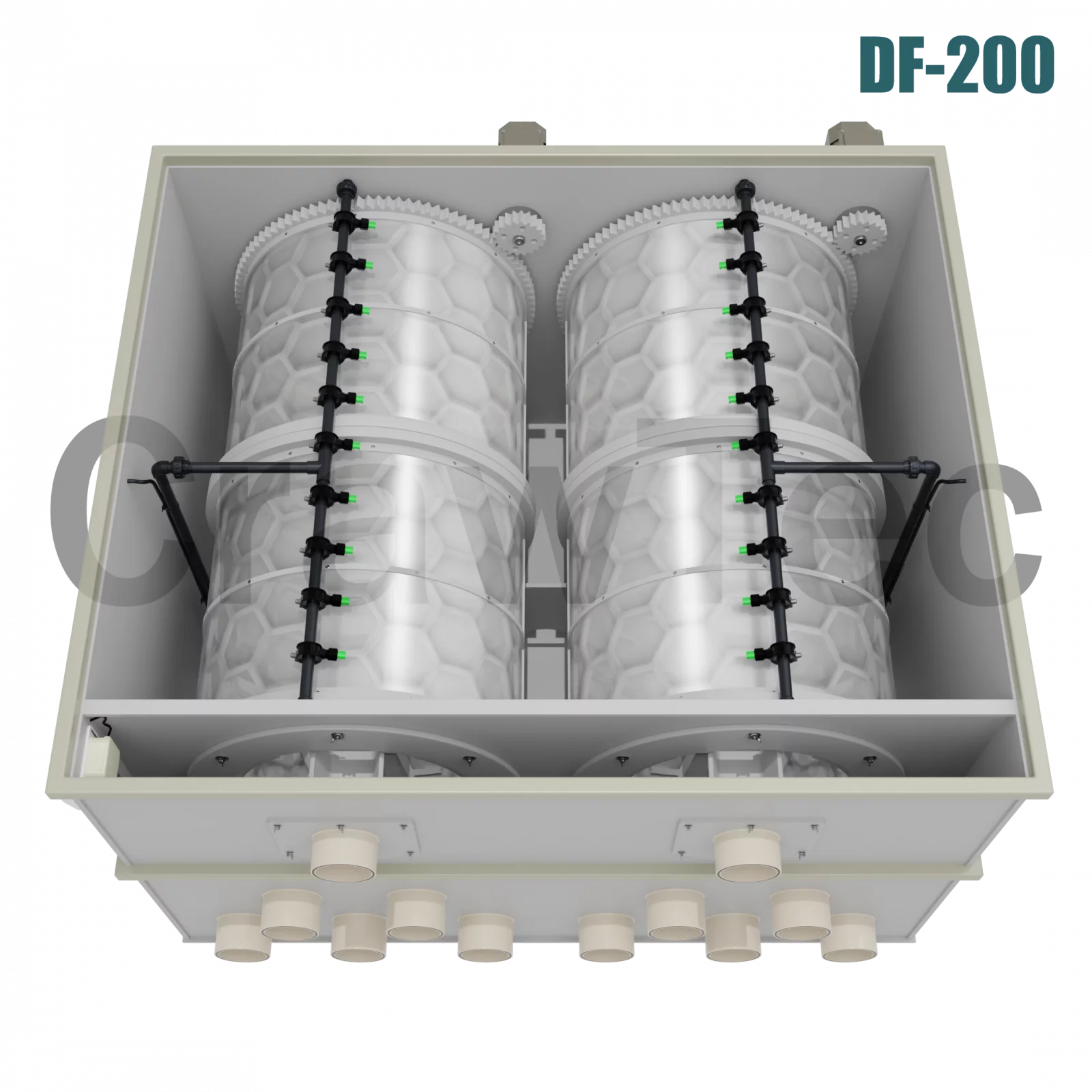

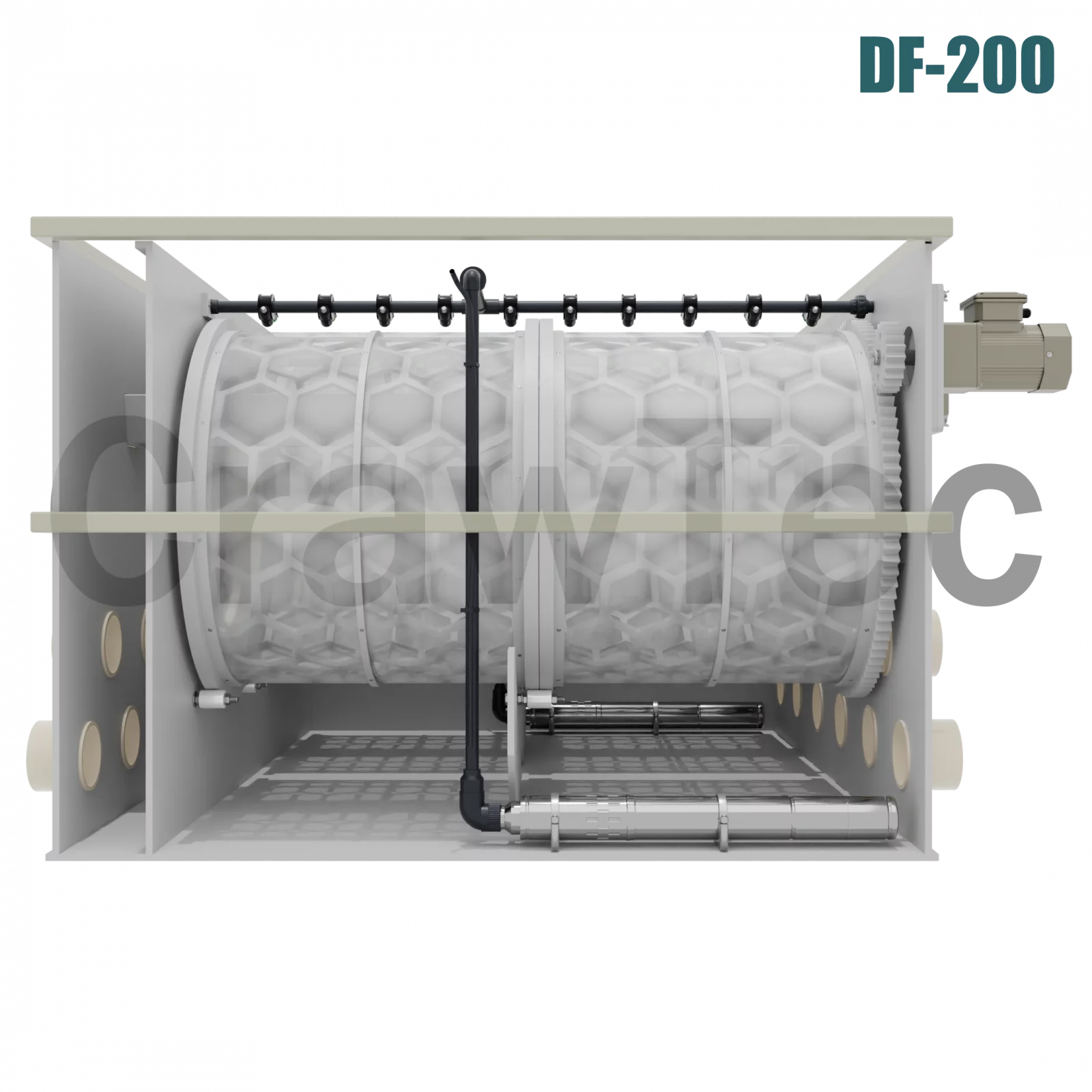

The filtration system is based on two rotating drums equipped with 63-micron stainless steel screens. When the level of contamination increases, the automated control system activates the cleaning cycle. Gearmotors rotate the drums while an integrated high-pressure flushing pump removes accumulated sludge without interrupting filtration.
Technical Specifications
- Throughput capacity: up to 200 m³
- Double drum size: 650 × 1000 mm
- Filtration fineness: 63 microns (stainless steel mesh)
- Overall dimensions: 1300 × 1500 × 900 mm
- Housing material: food-grade polypropylene, 12 mm thickness
- Inlet connections: 10 × 110 mm
- Outlet connections: 10 × 110 mm
- Gearmotors: 2 × 150 W for synchronized drum rotation
- Automatic rinsing system with integrated flushing pump
Applications, Automation, and Customisation
The CrawTec 200 m³ drum filter is used in large-scale fish and shrimp farms, sturgeon, trout, carp, and crayfish production systems, as well as in industrial aquaculture facilities requiring high filtration capacity. It is also suitable for large aquariums and ornamental ponds with significant water volumes.
Advanced level sensors and intelligent automation allow the filter to operate continuously without manual control, reducing labor costs and improving system stability. In addition to the standard configuration, CrawTec offers custom-designed drum filters with adjusted capacity, dimensions, and layout to meet specific project requirements.
